FLOW VALVE VRB - THROTTLE VALVE 3/8 TWO DIRECTION - 45lit

Use:

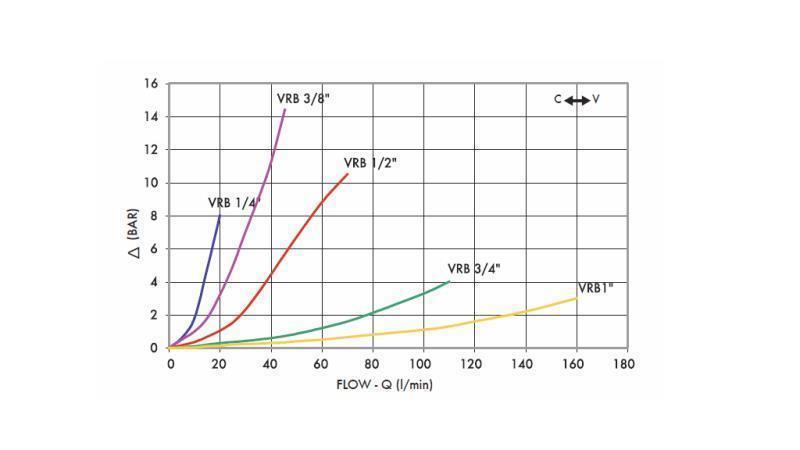

The valve acts as a flow regulator in both directions. Since the valve does not compensate for the pressure in the free line, the flow also largely depends on the pressure and the viscosity of the oil.

Material:

Housing: Galvanized metal
Seals: BUNA N standard
Closing type: ball

Connection:

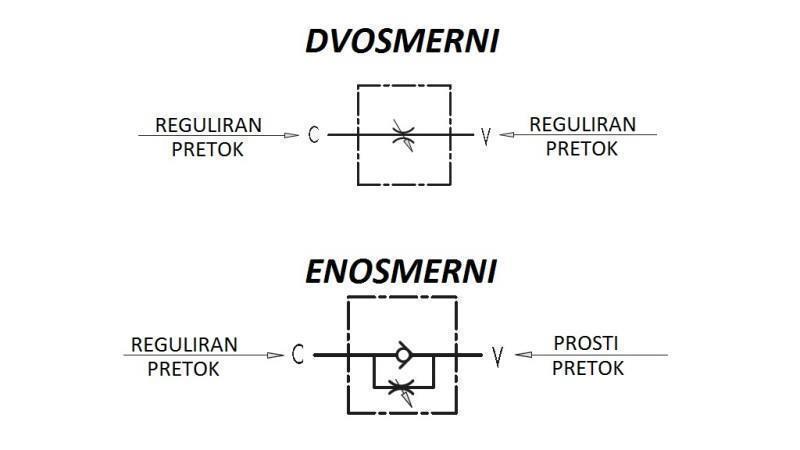

Connect V to the pressure side and C to the actuator (consumer) side. The flow is thus regulated in both directions (from C back to V and in the opposite direction.) When using a valve with an actuator that already has a block valve, the valve must be connected between the actuator and the block valve. The flow is regulated by rotating the valve; clockwise for higher flow, and counterclockwise for lower flow. After setting the desired flow, tighten the nut so that the desired value does not deviate due to possible vibrations.
