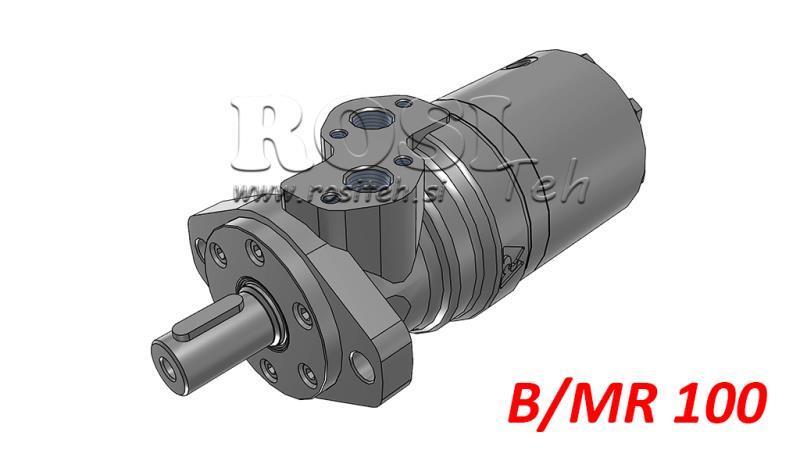

HYDRAULIC MOTOR B/MR 100 - WITH BRAKE
Article code:
13007
OEM:
9990000085613
Tax rate
22 %
Price without VAT:
336,07 €
Price with VAT:
410,00 €
Ref:
0
|
Supplier |
Turkey |
|
|
Return or exchange |
14 days |
|
|
Warranty |
6 months |
|
|
cm/rev |
99,8 |
|
|
Revolutions |
Constant |
500 |
|
[rpm] |
Intermittent operation |
600 |
|
Torque |
Constant |
24 |
|
[Nm] |
Intermittent operation |
25 |
|
max. |
32 |
|
|
Power |
Constant |
10,8 |
|
[kW] |
Intermittent operation |
12 |
|
Pressure |
Constant |
175 |
|
[bar] |
Intermittent operation |
200 |
|
max. |
225 |
|
|
Oil flow |
Constant |
50 |
|
[L/min] |
Intermittent operation |
60 |
|
Connection thread |
1/2" |
|
|
Weight [kg] |
11,2 |
|
|
Connection - brake |
1/4" |
|
|
Static brake torque (Nm) |
55 |
|
|
Max. Opening pressure (bar) |
200 |
|
|
Min. Brake release pressure (bar) |
13 |
|

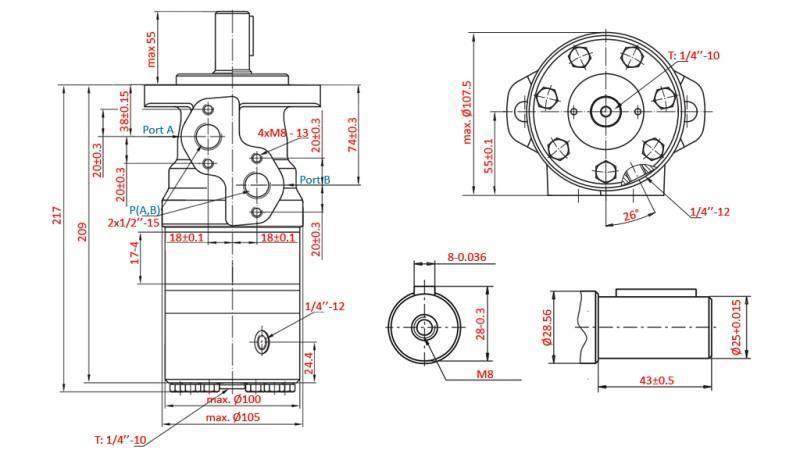

L [mm] |
L1 [mm] |
L2 [mm] |
|
|
B/MR 80 |
213,5 |
14 |
205,5 |
|
B/MR 100 |
217 |
17,4 |
209 |
|
B/MR 125 |
221,5 |
21,8 |
213,5 |
|
B/MR 160 |
227,5 |
27,8 |
219,5 |
|
B/MR 200 |
234,5 |
34,8 |
226,5 |
|
B/MR 250 |
243 |
43,5 |
235 |
|
B/MR 315 |
254,5 |
54,8 |
246,5 |
|
B/MR 400 |
269 |
69.4 |
261 |
