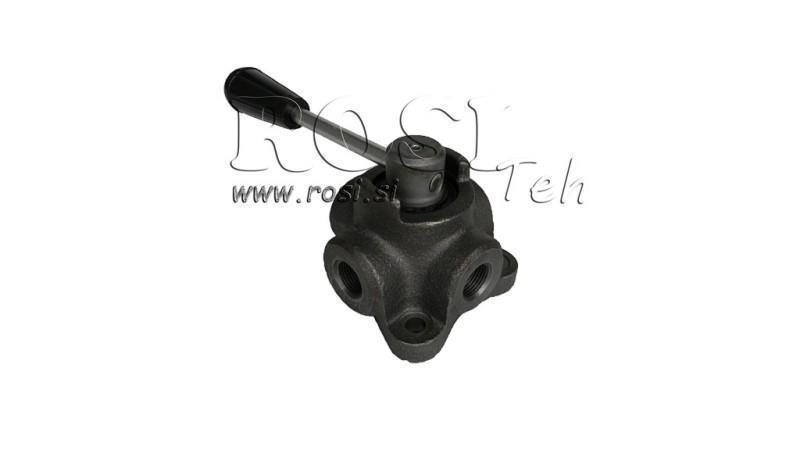

MANUAL 4-WAY VALVE IF 3/8 - 35LIT

Usage:

The valve is used as a four-way valve. The oil flow that passes into the valve through two inlets is redirected to two outlets. It can be used for double-acting actuators/cylinders or for reversing the direction of rotation of the hydraulic motor.

Material:

Housing: cast iron, internal parts hard metal
Seal: Buna N standard

Connection:

Connect 'P' to the pressure side and 'A' and 'B' to the ports, 'T' to the return and 'A' and 'B' to the actuator/cylinder or hydraulic motor. When the lever is in position '1', 'P' is connected to 'A' and at the same time 'B' is emptied into tank 'T'. When the lever is in position '2', 'P' is connected to 'B' and at the same time 'A' is emptied into tank 'T'. With the lever in the center position, all ports are closed (closed center).
