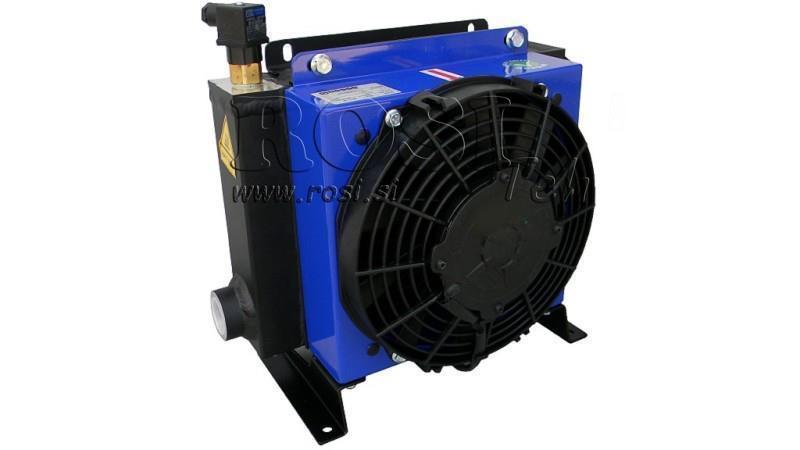

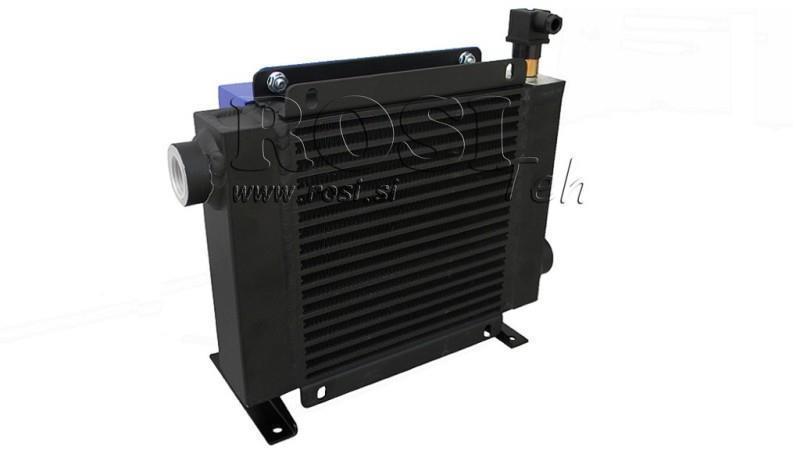

OIL HEAT EXCHANGER DC 12V HY05702 50-200 LIT
OIL HEAT EXCHANGER DC 12V HY05702 50-200 LIT
OIL HEAT EXCHANGER DC 12V HY05702 50-200 LIT
OIL HEAT EXCHANGER DC 12V HY05702 50-200 LIT
OIL HEAT EXCHANGER DC 12V HY05702 50-200 LIT
OIL HEAT EXCHANGER DC 12V HY05702 50-200 LIT
OIL HEAT EXCHANGER DC 12V HY05702 50-200 LIT
OIL HEAT EXCHANGER DC 12V HY05702 50-200 LIT
OIL HEAT EXCHANGER DC 12V HY05702 50-200 LIT
OIL HEAT EXCHANGER DC 12V HY05702 50-200 LIT
OIL HEAT EXCHANGER DC 12V HY05702 50-200 LIT
OIL HEAT EXCHANGER DC 12V HY05702 50-200 LIT

OIL HEAT EXCHANGER DC 12V HY05702 50-200 LIT

Article code:
10478
OEM:
9990000004034
Tax rate
22 %
Price without VAT:
540,98 €
Price with VAT:
660,00 €
Ref:
2
ADD TO CART

Standard compact oil heat exchangers »cross-flow«

are used to cool hydraulic systems. They are intended for installation on industrial machines, tractor attachments, mobile machines, car lifts, in the freight program, etc. Possibility of use with DC or AC electric motors.

Radiator cores

made out of aluminum alloy, are made using vacuum hard-welded technology. Achieving high resistance of the selected material and reliability ensures the best sealing to the pressures of various hydraulic systems.

air flow:
2360 m3/h
power:
246 W
capacity:
4,6 liters
voltage:
12V
current load:
20A
thermostat on:
60°C
product weight:
17,5 kg
max. static pressure:
36 bar
return or exchange:
14 days
start:
soft start
fan:
350 mm
outer protection:
IP 65-68
for fluids:
oil - water / glycol - Diesel
for oil flow:
50-200 l/min
max. operating temperaure:
120°C
warranty:
6 months
loudness:
72 db(A)
